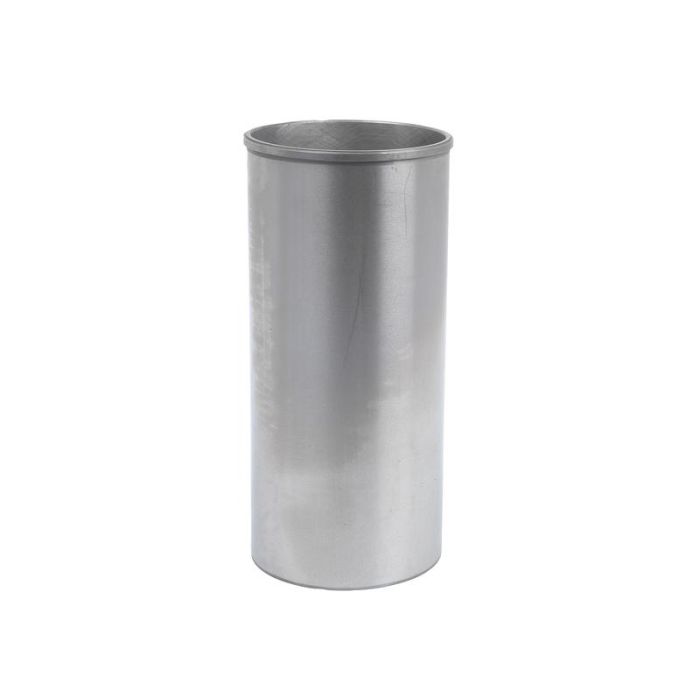

Cilinderbus

Hauteur mm	227.57
Afwerking	Afgewerkt
Boring Ø (mm)	98.46
Buitenkant Ø (mm)	103.22
Droog of nat	Dry
Flensbreedte mm	3.81
Flens Ø mm	106.4
Hoogte (mm)	227.57
Merk	Sparex
Perkins Build List	Perkins Build List: LA21194*, 21243*, 21245*, 21246*, 21248*, 21419, 22102*, 22207 (*=>UA187116L), LA21194*, 21243*, 21245*, 21246*, 21248*, 21593, 21912, 22102*, 22731 (*=UA187116L>), LD20007*, 21908*, 22055 (*=>U24720L) (Engines fitted with Flame Ring Liners), LD21691, 21731, 21908*, 22181, 22184, 22186, 22238, 22524, 22596, 22644, 22671, 22676, 22679, 22682, 22684, 22692, 22694, 22695, 22745, 22749, 22750, 22751, 22756, 22763, 22778, 22781, 22784, 22802, 22813, 22822, 22824, 22825, 31085, 31096, 31104, 31110, 31122, 31132, 31134, 33514, 50096, 50103, 50104, 50105, 50143, 50145, 50176, 50179, 50204, 70047, 80094, 80147 (*=U524721L>) (Engines fitted with Standard Pistons & Flame Ring Liners), TC, TE, TG, TH, TJ, TK, TP, TR, TT, TU, TW, TC (Excluding TC20820), TG21428, 22572, 22577, 22585, 22819, TW31015, 31017, 31051, 31054, 31087, 33169, 33196, 33383, 50003, 50055, 50059, 70005, 70007, 70038, 70087, 70158, 80006, 80045, 80062, 80065, 80189, 80242 (Flange Type Liner), TE00273, 20596, 20773, 21925, 22097, TH, TT, TC20820, TG21303, 22453, TJ, TK
Vlamring	Ja

Adapté à la marque/au modèle

Allis Chalmers	170, 175
Landini	6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7000, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, 9500, 9880, ADVANTAGE 65, ADVANTAGE 75, BLIZZARD 65, C10500, C6500, C6830, C6860, C7830, CF6830, LARGE 10000, LARGE 12500, LARGE 13000, LARGE 14500, LARGE 16000, LARGE 16500, LARGE 9550, REX 65, REX 75, TREKKER 65, TREKKER 70, TREKKER 75
Massey Ferguson	10, 1004T, 1007, 1014, 1024, 1100, 1104, 1105, 1114, 1130, 1134, 1135, 1200, 1250, 165, 165 US BUILT, 168, 174, 174C, 175, 175 US BUILT, 178, 184, 186, 187, 20, 24, 240, 255, 261, 2620, 2625, 2640, 2645, 265, 2675, 2680, 2685, 27, 2705, 2720, 2725, 273, 274, 274SK, 275, 283, 284, 29, 29XP, 3050, 3065, 307, 3070, 3080, 3090, 30D, 31, 31XP, 330, 3303, 3305, 3505, 3610, 362, 3630, 365, 3650, 372, 373, 374, 375, 375E BRAZILIAN, 377, 383, 384, 387, 390T, 393, 398, 399, 50, 500, 507, 50B, 50C, 50D, 50E, 50EX, 50H, 50HX, 510, 520, 525, 530, 530S, 560, 565, 575, 6000, 60H, 660 BRAZILIAN, 675, 698T, 699, 750, 760, 810, 820, 825, 830, 835, 840, 865, 99
Massey Harris	820
Perkins	A4.212 (LA), A4.236 (LD), A6.354 (TC), A6.354.4 (TW), AT6.354 (TE), AT6.354.4 (TU), T4.236 (LJ)
Volvo	2200, 2204, 2250, 2254, T500
White Oliver	1850, 2-105, 2-110, 2-85

Numéros OEM du fabricant

Allis Chalmers	70251001, 734644M1
JCB	02100206
Landini	744948M1, 131358394, 131358441, 31358394, 31358341, 31358441
Massey Ferguson	31358441, 31358341, 3637 766M91, 3637766M91, 736507M3, 736 507M3, 734644M1, 31358394, 744948V1, 744948M1, 3638 885M91, 762026M1, 3638885M91, 744948Z1, 744 948M1
Perkins	31358394, 31358341, 31358441
Volvo	PH31358394
White Oliver	31-2770027, 744948M1, 165279A
