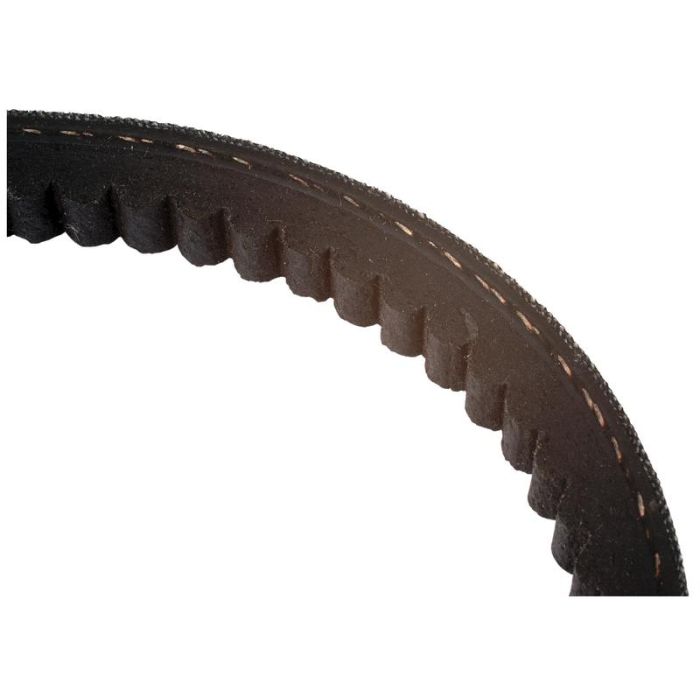

V-Snaar AVX 13x1200mm

Binnenlengte Li in (inch)	45
Breedte (inch)	1/2
Breedte (mm)	13
Buiten Lengte La (mm)	1200
Buitenlengte La in duim	47
Diepte (ins)	3/8
Diepte (mm)	10
Effectieve lengte mm	1182
Effective length (inch)	47
Inside length Li (mm)	1137
Lengte datum LD mm	1182
Merk	Sparex (Agribelt)
Pitch Length (Lp) (Lw):	1182
Sectie	AVX13
Snaar Nummer	AVX13x1200
Top Breedte x Diepte	13 x 10mm (1/2'' x 3/8'')
Type	Raw Edge Moulded Cogged Fan Belt

Adapté à la marque/au modèle

Case IH / International Harvester	1056, 1056XL, 1255, 1255XL, 1455, 1455XL, 956XL
Fendt	FARMER 310, FARMER 311, FARMER 312, FAVORIT 509 C, FAVORIT 510 C, FAVORIT 511 C, FAVORIT 512 C, FAVORIT 514 C
Landini	4000, 4500, 5000, 5500, 5530, 5560, 5830, 5840, 5860, 6000, 6030, 6060, 6070, 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6880, 7000, 7500, 7530, 7560, 7830, 7860, 7870, 7880, 8500, 8530, 8560, 8830, 8860, 8870, 8880, BLIZZARD 50, BLIZZARD 60, BLIZZARD 75, BLIZZARD 85, C4500, C4830, C5830, C6830, C7830, CF5030, CF5830, CF6830, GLOBUS 50, REX 65, REX 75, REX 85, TREKKER 55, TREKKER 65, TREKKER 70, TREKKER 75, TREKKER 85
Massey Ferguson	133, 134, 134C, 135, 140, 145, 148, 152, 154, 154C, 164, 165, 174, 174C, 184, 185, 188, 194, 194C, 20, 203, 205, 20F, 2135, 2203, 2205, 234, 234C, 243, 244CF, 253, 254, 254C, 263, 264, 264C, 273, 274, 274C, 283, 284, 293, 294, 294C, 30, 302, 304, 30D, 30E, 30H, 3125, 3165, 3303, 3305, 333, 334, 340, 342, 35, 350, 352, 353, 353LX, 354, 355, 356CF, 35X, 360, 362, 363, 363LX, 364, 3645, 366CF, 372, 373, 374, 376C, 376CF, 376XCF, 377, 382, 383, 383LX, 384, 387, 393, 393LX, 394, 394C, 396, 396C, 396CF, 397, 40, 40B, 40E, 50, 5425, 5435, 5445, 5455, 6160, 6170, 6180, 65, 765, 8925, 8926, 8937, 8939
Perkins	1006-6T (YB), A4.236 (LD), AD3.152 (CE), AD4.203 (JE), T3.152.4 (CN)

Numéros OEM du fabricant

Allis Chalmers	71166813V
Belt References	AVX13X1200
Case IH / International Harvester	3328279R1, 3228279R1
Deutz-Fahr	01180150
Fendt	X696624200000, X696.624.200.000
Fiat	4816716, 500370647
Landini	3637597M1, 3612115M1, 3639683M1, X696624200000, X69662420000, 2614B145, 2614B645, 2614B644
Leyland	83H555
Massey Ferguson	186976M1, 186976V1, X696624200000, 890982M1, 962184M1, 353756X1, 1447784M91, 3714894M1, 2614B644, 3639683M1, 3637597V1, 3612115M1, 2614B145, 3637597M1
Perkins	2614B644
