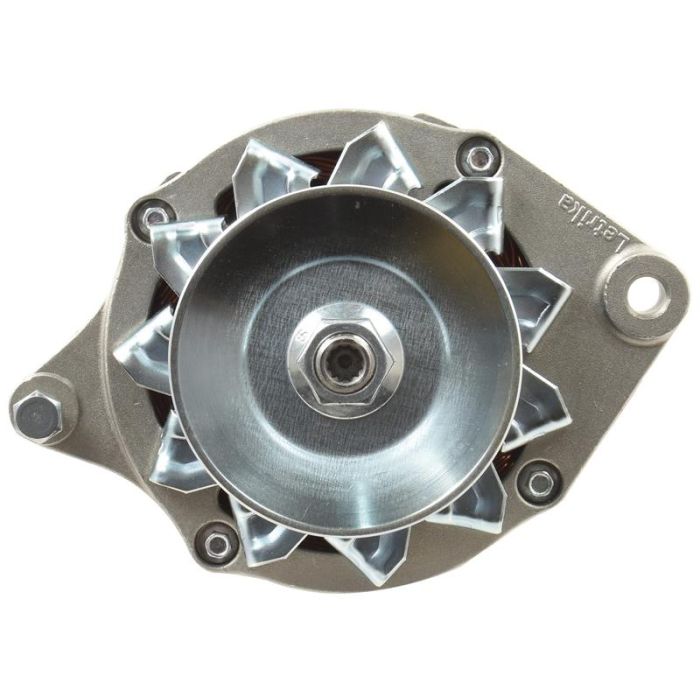

Dynamo (Mahle) - 14V, 65 Ampère

B mm	10.3
C mm	83
A en mm	27
D (mm)	32.5
A (mm)	27
Aantal gaten	Two
Ampère	65
Aslengte (mm)	40
B (mm)	10.3
Breedte (mm)	177.8
Breedte riem (mm)	23
C (mm)	83
D (mm)	32.5
Hoogte (mm)	158.8
Inbouwmaat	10.3
Lengte (mm)	209.6
Merk	Mahle
Met ventilator geleverd	Ja
Moer	Hex Nut
Poelie Ø (mm)	90
Riem type	Single Groove
Type as	Getand
Type ventilator	External
Verbindingstype	Connector
Voltage	14V

Adapté à la marque/au modèle

Landini	LARGE 16000, LARGE 16500
Massey Ferguson	135, 140, 142, 145, 148, 152, 155, 158, 168, 174, 194, 20, 20F, 240, 245, 253, 254, 255, 2620, 2640, 265, 2680, 2720, 2725, 274, 275, 283, 284, 285 (FR), 290, 298, 30, 3050, 3060, 3065, 3070, 3080, 3090, 30B, 30D, 30E, 30H, 3303, 360, 3610, 3630, 3650, 3680, 375, 375E BRAZILIAN, 383, 390, 390E BRAZILIAN, 390T, 398, 399, 40B, 40E, 50A, 550, 560, 565, 575, 590, 675, 690, 698
Perkins	A4.212 (LA), A4.236 (LD), A6.354 (TC), A6.354.4 (TW), AD3.152 (CE), AD4.203 (JE)
Renault	103-12, 103-14, 103-54, 106-54, 110-14, 113-12, 113-14, 120-14, 133-14, 155-54, 160-94, 180-94, 489, 58-12, 58-14, 58-32, 58-34, 600M, 65-12, 65-14, 65-32, 650MI, 75-12, 75-14, 75-32, 75-34, 750MI, 754MI, 80-12, 80-14, 800M, 85-12, 85-32, 85-34, 850MI, 854MI, 89, 90-32, 90-34, 900, 904, 92, 94, 95-12, 95-14

Numéros OEM du fabricant

Iskra	IA0693
Landini	3619490M00, 3581387M1, 3405390M1, 3381352M91, 1895398M91
Lester	12099, 12173, 12043, 12122, 12103
Lucas	LRA220, LRA964, 24088, LRA00380, LRA00964, LRA00959, LRA00961, 24204, LRA961, LRA380
Massey Ferguson	3619490M00, 1895398R1, 1895398M91, 2541131, 1691795R92, 3405390R1, 3467043R91, 3405390M1, 3581387M1, 1699872R1, 1699872T, 3467043M91, 3381352M91, 1699881M91, 3933144M91, 908487M1
Renault	6005003157, 7700017041, 6005701123, 7700012969
Valeo	436264, 541131
